New method developed for creating solid state qubits using lasers

Posted on
NQIT researchers have taken a significant step forward in the development of solid state spin qubits by developing a new method for forming nitrogen-vacancy (NV) centres in diamond using laser writing.

In a new paper published today in Nature Photonics, Yu-Chen Chen and Professor Jason Smith in the Department of Materials at Oxford University, along with Dr Patrick Salter and Prof Martin Booth from the Department of Engineering Science and colleagues at the Universities of Bristol and Warwick, demonstrate controlled generation of single NV centres in diamond at a precise location within the crystal lattice.

Solid-State Qubits

Qubits are the units of quantum information and can be made from any physical quantum system that has two states that display mutual coherence. Within NQIT, we are exploring several possible such systems for inclusion in quantum networks, including trapped ion, superconducting circuits and point defects in crystals such as diamond.

Diamond is made up of a regular lattice of carbon atoms. If a carbon atom is missing, this forms a vacancy. If a nitrogen atom is sitting in the lattice in place of a carbon atom and happens to be next to a vacancy, then this forms a special defect called a ‘nitrogen-vacancy’ (NV) centre.

The electrons associated with the NV centre have a property called ‘spin’ that describes their magnetic orientation. When they are subjected to a magnetic field, the electronic spin can be up, down or in a superposition of the two. This then forms a qubit.

Key advantages of NV centres are that they do not require low temperatures and are natural light emitters, making the measurement process easier. NV centres therefore show promise as long-lived quantum light sources and as qubits in a quantum computer.

Making NV Centres

If we are going to use NV centres as qubits, though, we need a method of accurately and reliably placing coherent colour centres at specific locations in a diamond crystal lattice. This accuracy is required so they can be integrated with optical and electronic components to form the quantum computer.

Existing methods of forming colour centres, such as ion implantation and electron irradiation, cause damage to the crystal lattice which can adversely affect the NV centre properties, so a method that leaves the diamond otherwise in good condition represents an important step forwards.

Laser writing has already been used to fabricate photonic circuits in glass for quantum optical processing, and this new research shows that it is just as useful a process for producing single, high quality NV centres “on-demand”.

These new results illustrate the potential of laser writing as a new tool for defect engineering in quantum technologies.


Read more:

  • Laser writing of coherent colour centres in diamond” Yu-Chen Chen, Patrick S. Salter, Sebastian Knauer, Laiyi Weng, Angelo C. Frangeskou, Colin J. Stephen, Philip R. Dolan, Sam Johnson, Ben L. Green, Gavin W. Morley, Mark E. Newton, John G. Rarity, Martin J. Booth, Jason M. Smith, Nature Photonics

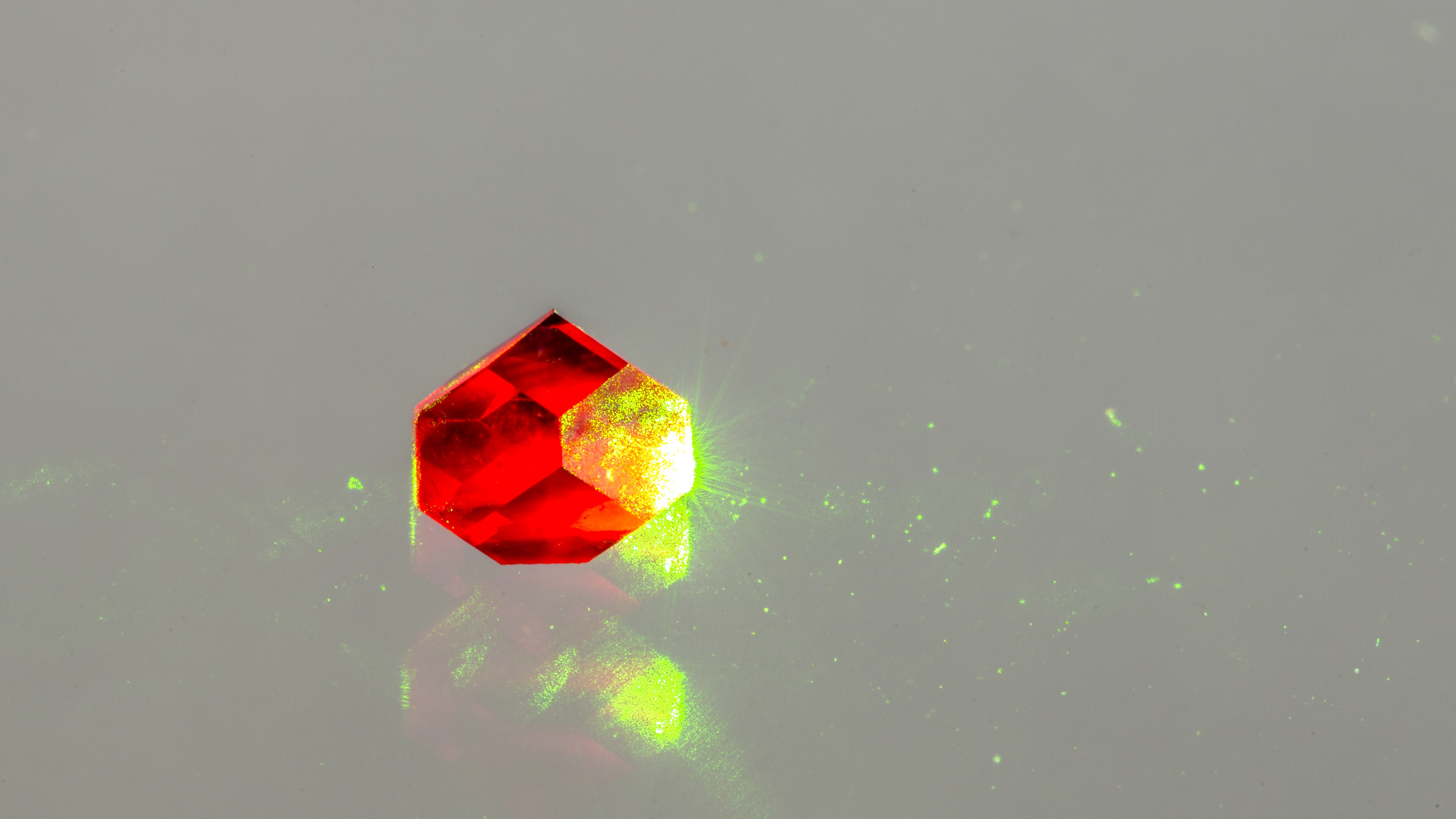

Photograph of diamond containing nitrogen vacancies fluorescing due to illumination with green light. Credit: Jon Newland
Photograph of diamond containing nitrogen vacancies fluorescing due to illumination with green light. Credit: Jon Newland

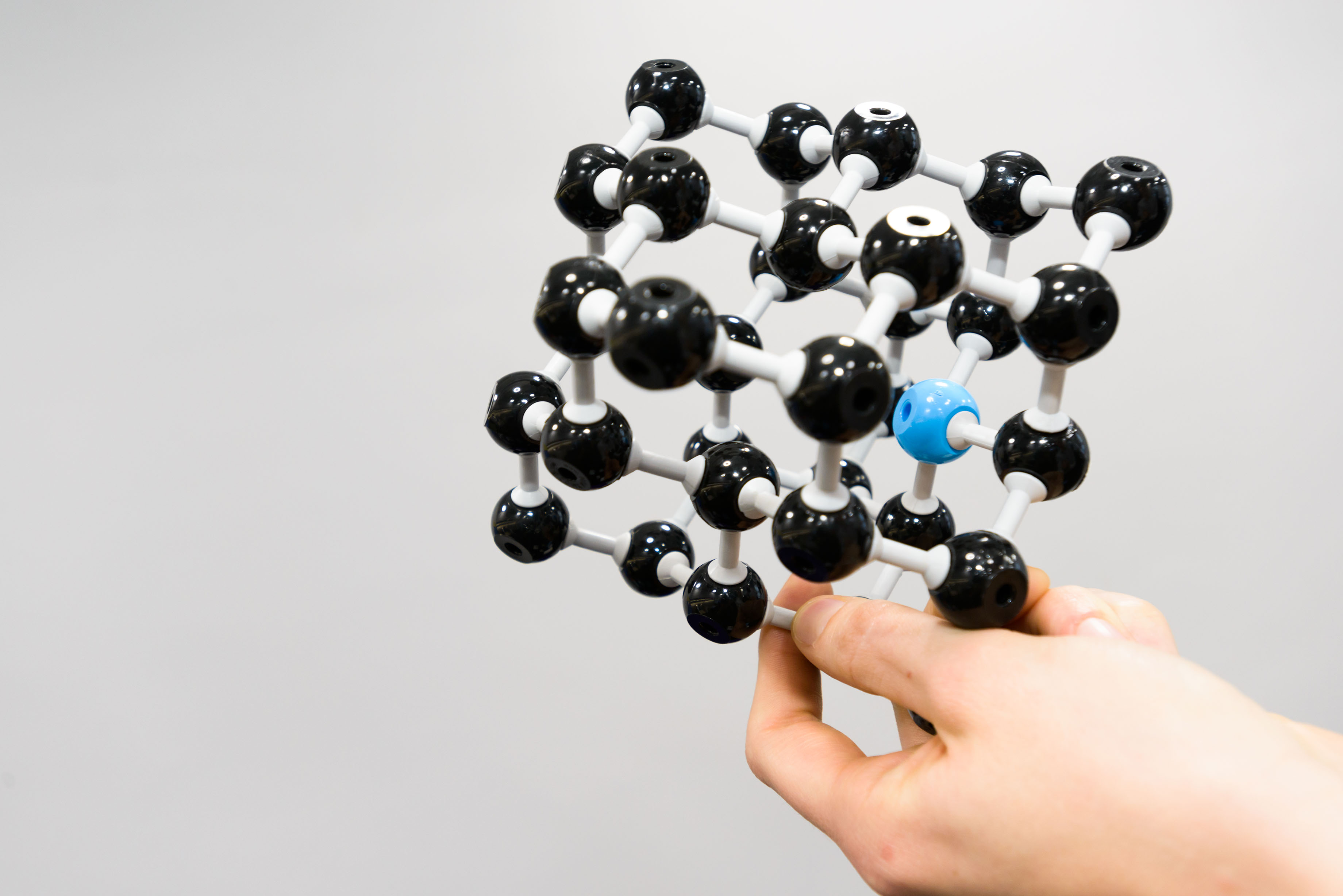

A model of a diamond lattice, with carbon atoms in black and an “NV” centre represented by a blue nitrogen atom next to a gap in the lattice. Credit: Dan Tsantilis / EPSRC
A model of a diamond lattice, with carbon atoms in black and an “NV” centre represented by a blue nitrogen atom next to a gap in the lattice. Credit: Dan Tsantilis / EPSRC
